P25¶

P25 settings are on Radio > P25. Turn it on with the switch next to the title, make your changes, then Apply.

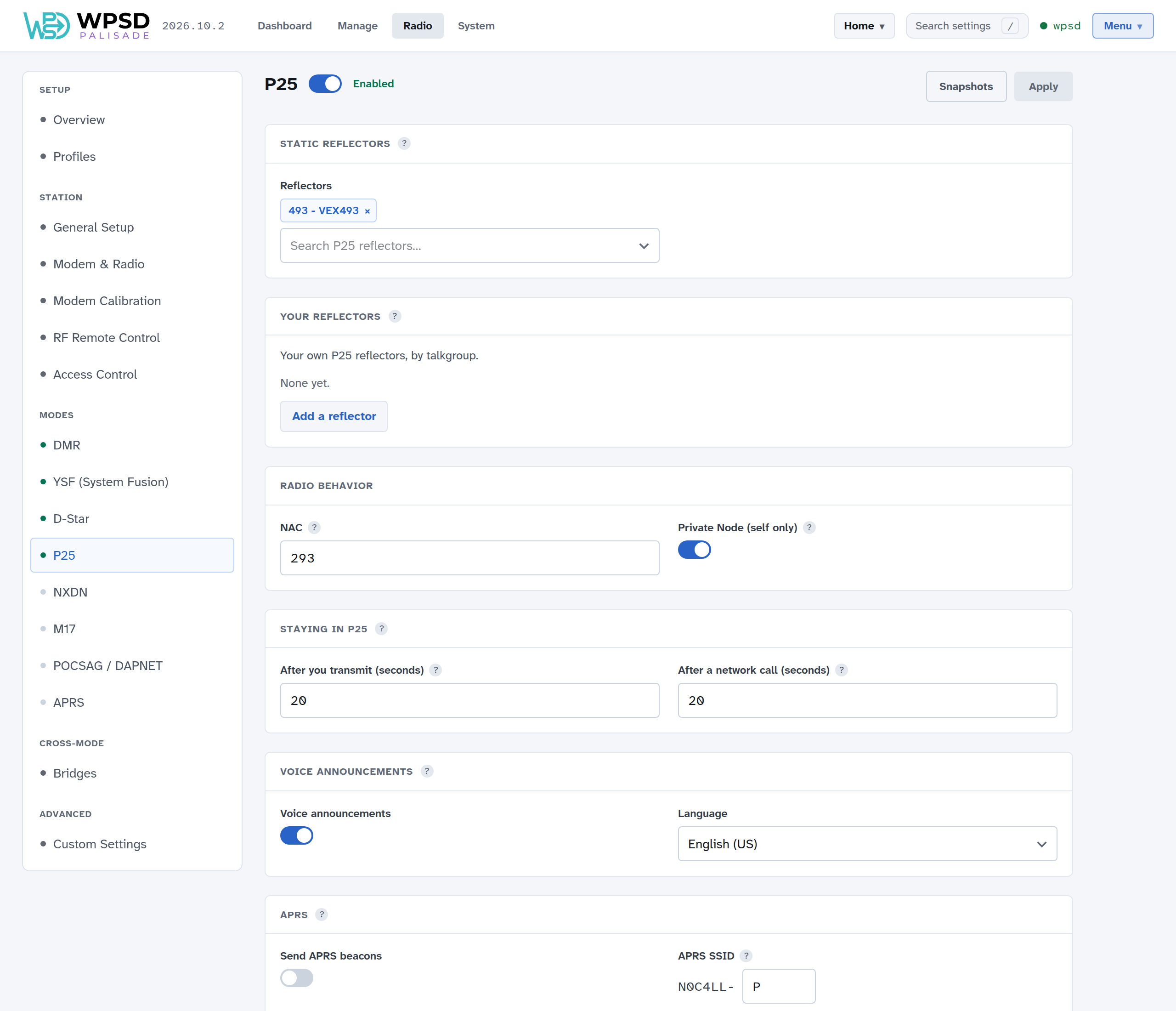

Radio > P25: static reflector 493 VEX493, your own reflectors, NAC and Private Node, staying in P25, voice announcements and APRS

Static Reflectors¶

Reflectors linked at startup and kept linked. Unlike a single default reflector, P25 can keep several linked at once; choose each from the list.

Your reflectors: add P25 reflectors the lists don’t have; see Custom Hosts and Talkgroup Names.

Radio Behavior¶

NAC: the Network Access Code, P25’s equivalent of a color code (293 unless you use another). Your radio must match it.
Private Node (self only): only your own ID can use the WPSD device in P25. On by default.

Staying in P25, voice announcements, APRS¶

As for the other modes: how long the WPSD device stays in P25 after a call (20 seconds is a good start), spoken link messages and their language, and the APRS beacon (see APRS and GPS).

Linking and unlinking¶

Link another reflector now from Manage P25. From your radio, dial the reflector’s number as a talkgroup to link it, and talkgroup 9999 to unlink.
